11.6 Inch In Wall Allinone Touch Screen Android Tablet Pc

General:
Model No.:MW-1166TP
H.S. Code:8471301000
Warrant:Standard 1 year
Panel:
Panel Size:11.6inch TFT LCD
Max Resolution:1366*768
Aspect Ratio:16:9
Viewing Angle:85/85/85/85
Contrast Ratio:500:1
Brightness:250nits
Response Time:12 ms
Lamp Type:WLED
Build in Speakers:2x5W
Power Input:110-240v
DC Output:12V,2A
Physical Characteristics:
Product Weight:0.54KGS

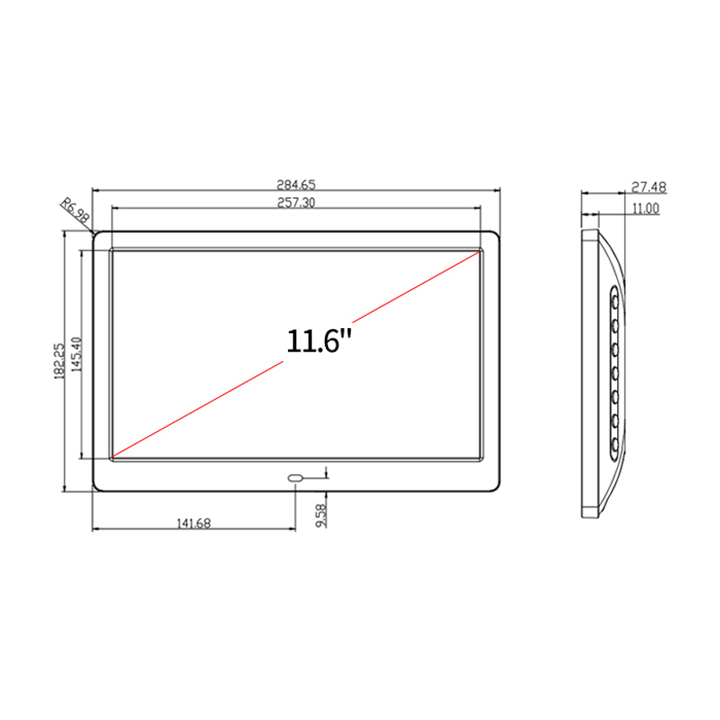

Outlook Dimensions:284.65*182.25*27.48MM
Display Area:256.125(W)×144(H)

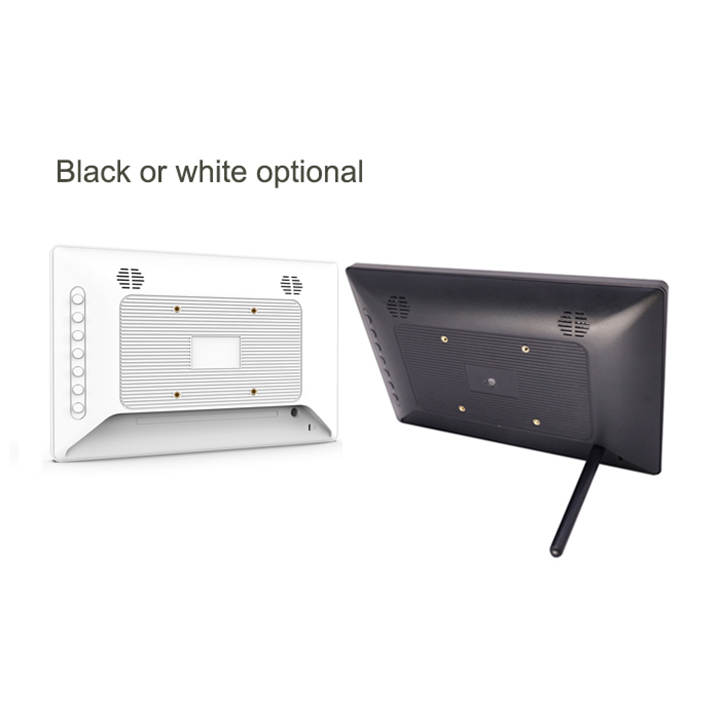

Color:Black or optional
Installation:VESA wall mount or desktop
Materials:Plastic
Display Hardware:
CPU Options:A64 Quad-core ARM Cortex-A53, 1.5GHz
RK3566 Quad-core ARM Cortex-A55, 1.8GHz
RK3568 Quad-core ARM Cortex-A55, 2.0GHz
RK3288 Quad-core ARM Cortex-A17, 1.8GHz
RK3399 Dual-core Cortex-A72 2.0GHz+Quad-core Cortex-A53, 1.5GHz
RK3588 Cortex-A76+Cortex-A55, 2.4GHz
T982  Cortex-A55, 1.92GHz
RAM&Memory:RAM: 1GB/2GB/4GB/8GB
Flash memory: 8GB/16GB/32GB/64GB/128GB
SSD: 128GB/256GB/512GB/1TB
WiFi module:802.11 b/g/n, 2.4GHz/5.0GHz/6GHz
3G/4G network:Support 3G/4G/5G(optional)
BT module:4.0/4.2/5.2 optional

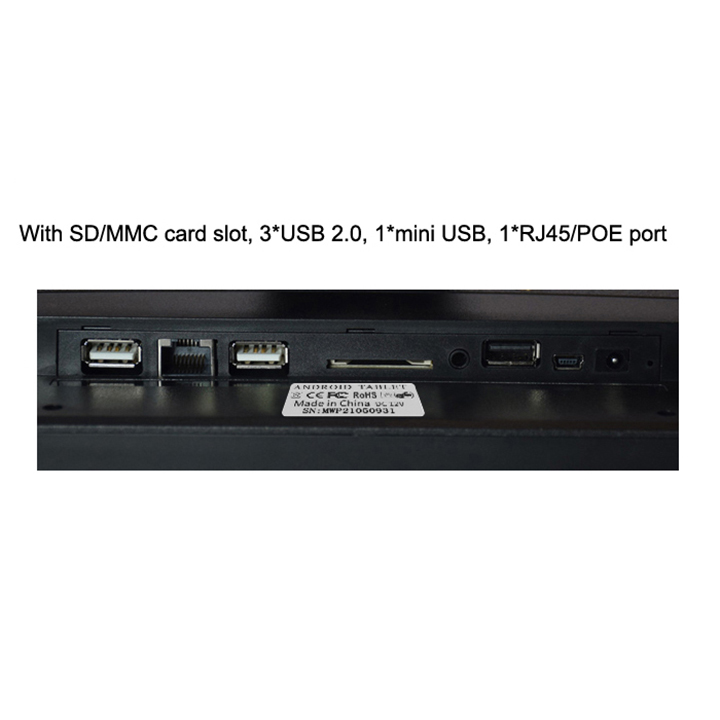

USB port:Support USB mouse or keyboard
Operating system:Android 6.0/7.1/8.1/11.0/12.0 Or Linux Debian10/ubuntu18.04
Extendable Options:
Touch screen:Capacitive (10-20 Touch Points)
High brightness:Normal/500nits/700nits/1000nits optional
Camera:2MP/5MP/8MP
Ooeratina Temperature:lndustrial grade:-20 to 70°C/-30 to 80°C
Ambient Sensor:Auto brightness adjustment against environment
Battery Power:powered by rechargable lithium battery
3G/4G network:Build in 3G/4G module with SIM card slot
GPS:Build in GPS with entena
Shelf mounting bracketFor supermarket advertisement display
Desktop bracket:Works as POS machine
POE design:Powered by RJ45 port
Battery powered:by external battery pack.
Accessories:
Power Adaptor,Bracket,Remote Control, Use Manual
Packing Details:
Carton size:
670*345*335MM
Unit/Carton:10PCS
G.W./Carton:12KGS



  • Tablet/Digital Signage

    Tablet/Digital Signage

    1.CPU: A64/RK3562/RK3566/RK3568/RK3288/RK3399

    /RK3588/T982

    2.RAM: 1GB/2GB/4GB/8GB

    3.Flash memory: 8GB/16GB/32GB/64GB/128GB

    4.SSD storage: 120GB/240GB/516/1T

    5.Operating system: Android 6.0/7.1/8.1/9.0/11.0/12.0

    /13.0 Or Linux Debian10/Ubuntu18.04/Ubuntu20.04

    6.WIFI 2.4G/5.0G/6.0G

    7.With CMS to be digital signage
