| General: | |
| Model No.: | MW-2154TP |
| H.S. Code： | 8471301000 |
| Warrant： | Standard 1 year |
| Panel: | |
| Panel Size： | 21.5inch TFT LCD |
| Max Resolution： | 1920*1080 |
| Aspect Ratio： | 16:9 |
| Viewing Angle： | 89/89/89/89 |
| Contrast Ratio： | 3000:1 |
| Brightness： | 250nits |
| Response Time： | 8 ms |
| Lamp Type： | WLED |
| Build in Speakers： | 2x5W |
| Power Input： | 110-240v |
| DC Output： | 12V,2A |
| Physical Characteristics: | |
| Product Weight： | 2.26KGS |

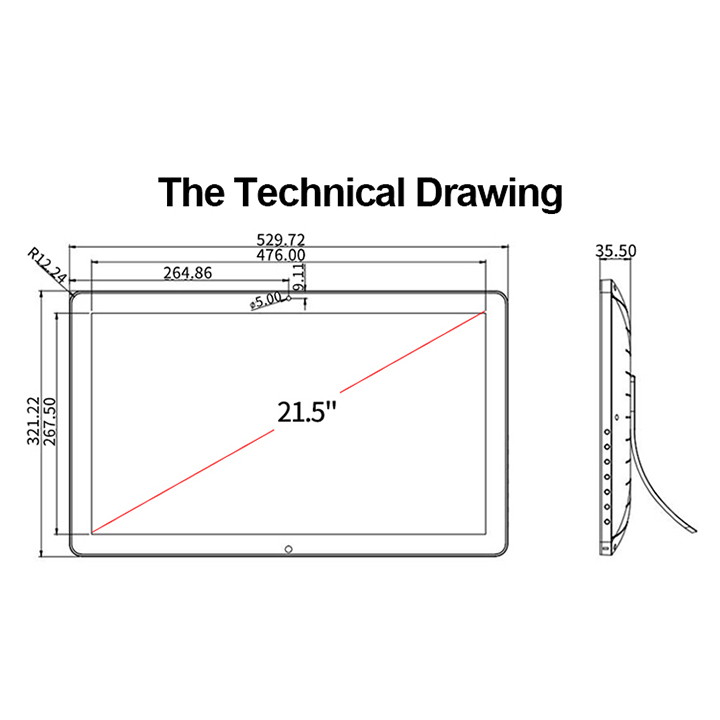

| Outlook Dimensions： | 529.72*321.22*35.50MM |
| Display Area： | 476.64(W)×268.11(H) |
| Color： | Black or optional |

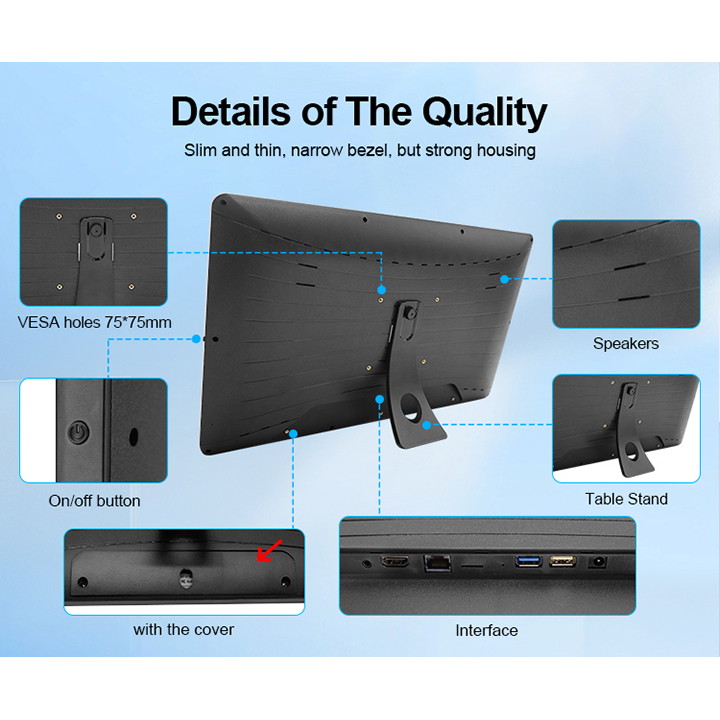

| Installation: | VESA wall mount or desktop |
| Materials： | Plastic |
| Display Hardware: | |
| CPU Options: | A64 Quad-core ARM Cortex-A53, 1.5GHz |
| RK3566 Quad-core ARM Cortex-A55, 1.8GHz | |
| RK3568 Quad-core ARM Cortex-A55, 2.0GHz | |
| RK3288 Quad-core ARM Cortex-A17, 1.8GHz | |
| RK3399 Dual-core Cortex-A72 2.0GHz+Quad-core Cortex-A53, 1.5GHz | |
| RK3588 Cortex-A76+Cortex-A55, 2.4GHz | |
| T982 Cortex-A55, 1.92GHz | |
| RAM&Memory: | RAM: 1GB/2GB/4GB/8GB |
| Flash memory: 8GB/16GB/32GB/64GB/128GB | |
| SSD: 128GB/256GB/512GB/1TB | |
| WiFi module: | 802.11 b/g/n, 2.4GHz/5.0GHz/6GHz |
| 3G/4G network: | Support 3G/4G/5G(optional) |
| BT module: | 4.0/4.2/5.2 optional |
| USB port: | Support USB mouse or keyboard |
| Operating system: | Android 6.0/7.1/8.1/11.0/12.0 Or Linux Debian10/ubuntu18.04 |
| Extendable Options: | |
| Touch screen: | Capacitive (10-20 Touch Points) |
| High brightness: | Normal/500nits/700nits/1000nits optional |
| Camera： | 2MP/5MP/8MP |
| Ooeratina Temperature： | lndustrial grade:-20 to 70°C/-30 to 80°C |
| Ambient Sensor： | Auto brightness adjustment against environment |
| Battery Power： | powered by rechargable lithium battery |
| 3G/4G network： | Build in 3G/4G module with SIM card slot |
| GPS： | Build in GPS with entena |
| Shelf mounting bracket： | For supermarket advertisement display |
| Desktop bracket： | Works as POS machine |
| POE design： | Powered by RJ45 port |
| Battery powered: | by external battery pack. |
| Accessories: | |

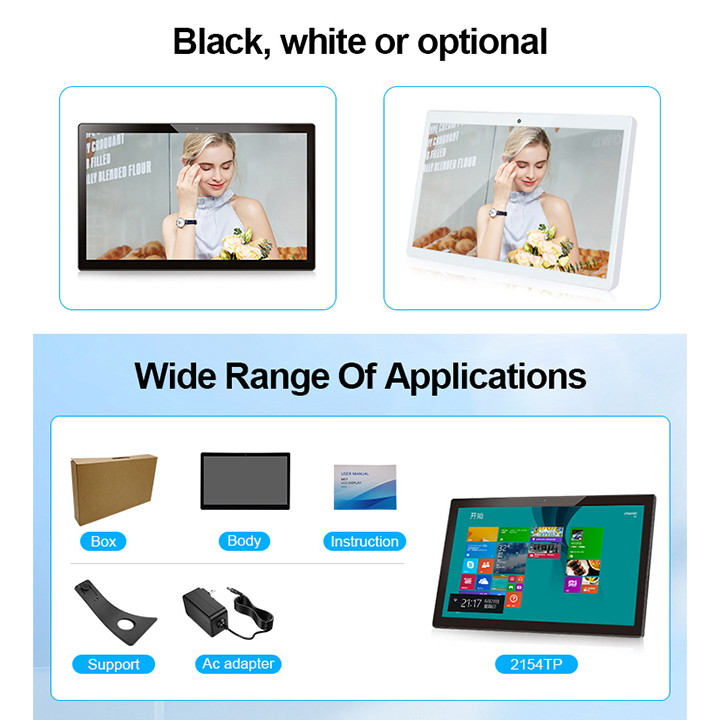

| Power Adaptor,Bracket,Remote Control, Use Manual | |
| Packing Details: | |
| Carton size： | 610*480*240MM |
| Unit/Carton： | 2PCS |
| G.W./Carton： | 15KGS |
1.CPU: A64/RK3562/RK3566/RK3568/RK3288/RK3399
/RK3588/T982
2.RAM: 1GB/2GB/4GB/8GB
3.Flash memory: 8GB/16GB/32GB/64GB/128GB
4.SSD storage: 120GB/240GB/516/1T
5.Operating system: Android 6.0/7.1/8.1/9.0/11.0/12.0
/13.0 Or Linux Debian10/Ubuntu18.04/Ubuntu20.04
6.WIFI 2.4G/5.0G/6.0G
7.With CMS to be digital signage
