| General: | |
| Model No | MW-194AB(N/P/S/M) |
| H.S. Code | 8528591090 |
| Warranty | Standard 1 year |
| Panel: | |
| Panel Size | 19inch TFT LCD |
| Max Resolution | 1280*1024 |
| Aspect Ratio | 5:4 |
| Pixel Pitch | 0.294x0.294 |
| Viewing Angle | 70/70/75/60 |
| Contrast Ratio | 700:1 |
| Brightness | 270 cd/m2 |
| Response Time | 8ms |
| Display Area | 376.32x301.056mm |
| Panel Size | 396x324x14.33mm |
| Lamp Type | WLED |
| Build in Speakers | 2x3W |
| Power Input | 110-240v |
| Power Consumption | 22W |
| Physical Characteristics: | |
| Product Weight | 4KG |
| Outlook Dimensions | 412x337x45mm |
| Color | Black or optional |
| Installation: | VESA wall mount or desktop |
| Materials | Metal |
| Extendable Options: | |
| Touchscreen | Capacitive(PCAP)touch/Resistive touch/IR touch |
| High brightness | 500nits/700nits/1000nits |
| Motion sensor | For auto power ON/OFF or sound/mute or play/stop |
| Camera | 2MP/5MP/8MP |
| Accessories: | |
| Power cord, manual, remote control, keys, tools, screws, warranty card | |
| Packing Details: | |
Carton size | 570x520x430mm |
| Unit/Carton | 5PCS |
| G.W./Carton | 25KG |
1.CPU: A64/RK3562/RK3566/RK3568/RK3288/RK3399
/RK3588/T982
2.RAM: 1GB/2GB/4GB/8GB
3.Flash memory: 8GB/16GB/32GB/64GB/128GB
4.SSD storage: 120GB/240GB/516/1T
5.Operating system: Android 6.0/7.1/8.1/9.0/11.0/12.0
/13.0 Or Linux Debian10/Ubuntu18.04/Ubuntu20.04
6.WIFI 2.4G/5.0G/6.0G
7.With CMS to be digital signage
Standalone Advertising Display
1.Auto playback and loop when power on
2.Internal memory: 1GB/2GB/4GB/8GB/16GB/32GB/64GB
3.Support max full HD display
4.With SD card slot, USB2.0 port
5.With/Without Mini HDMI input
6.Set time power on/off at specific time

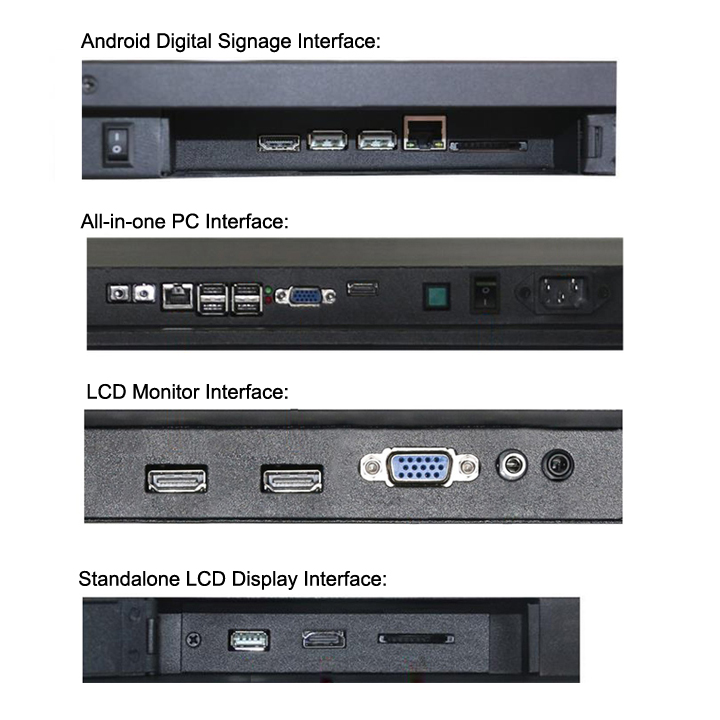

1.Standard HDMI/DVI/VGA inputs,
USB port(touch screen), DP optional
2.2K/4K display
3.IR touch/Capacitive touch
4.Auto display when there is signal
5.Support devices: mini PC/computer/Android box
/Raspberry PI/Media player box
1.CPU: Intel Processor i3/i5/i7/i9（4th to 13th）
2.RAM: 4GB/8GB/16GB/32GB
3.SSD storage: 120GB/240GB/516/1T/2T
4.LAN port: 1/2 ports, Baimeganet/Giganet
5.Operating system: Windows 10/11/Linux
6.WIFI 2.4G/5.0G/6.0G
