| General: | |
| Model No.: | MW-1566TP |
| H.S. Code： | 8471301000 |
| Warrant： | Standard 1 year |
| Power Input： | 12V, 2A |
| Panel: | |
| Panel Size： | 15.6 inch |
| Max Resolution： | 1920x1080 |
| Aspect Ratio： | 16:9 |
| Viewing Angle： | 89/89/89/89 |
| Contrast Ratio： | 600:1 |
| Brightness： | 250nits |
| Response Time： | 12ms |
| Display Area： | 345.4x194.5mm |
| Build in Speakers： | 2x5W |
| Operating Temp: | (0-50°C) |
| Physical Characteristics: | |
| Product Weight： | 2.3KGS |

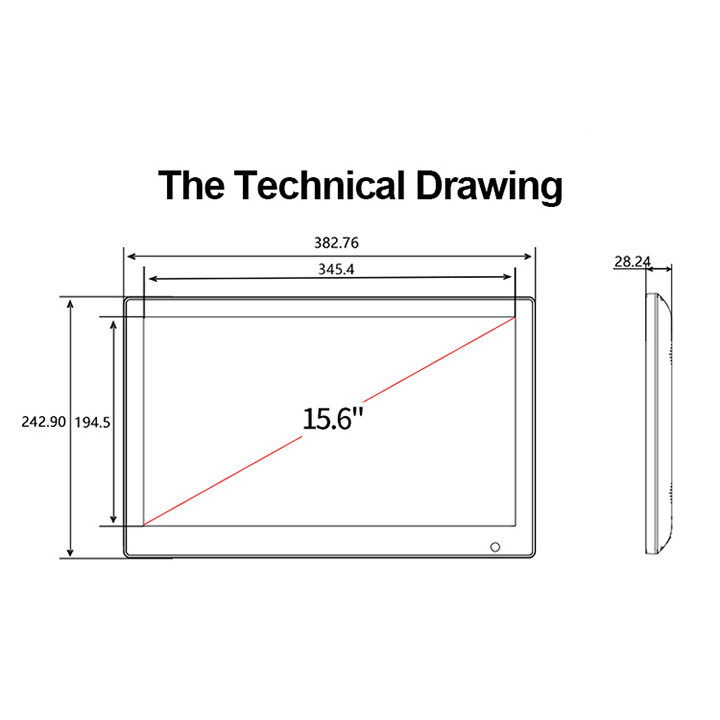

| Outlook Dimensions： | 382.76x242.90x28.24mm |
| Color： | Black/white or optional |

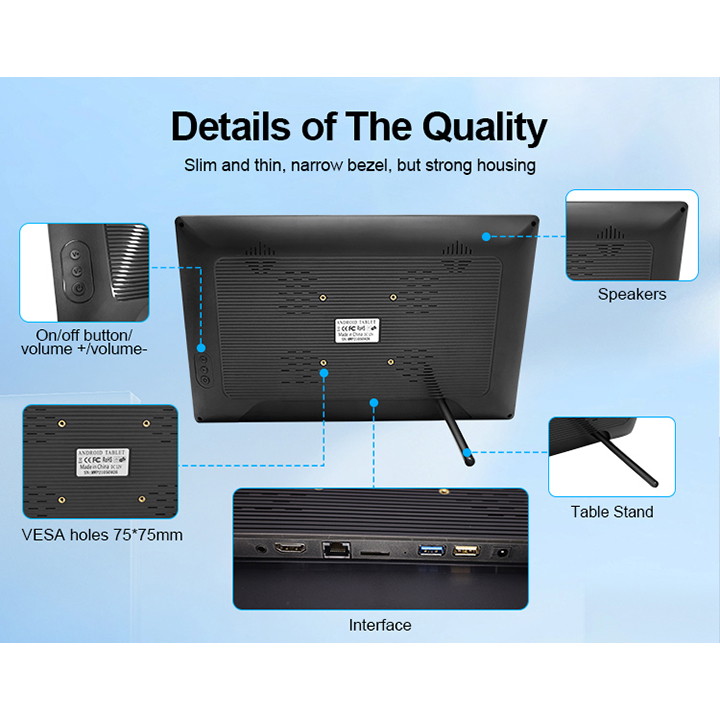

| Installation: | VESA wall mount or desktop |
| Materials： | Plastic |
| Display Hardware: | |
| CPU Options: | A64 Quad-core ARM Cortex-A53，1.5GHz |
| A133 Quad-core ARM Cortex-A53，1.6GHz | |
| RK3566 Quad-core ARM Cortex-A55，1.8GHz | |
| RK3568 Quad-core ARM Cortex-A55，2.0GHz | |
| RK3288 Quad-core ARM Cortex-A17，1.8GHz | |
| RK3399 Dual-core Cortex-A72 2.0GHz + Quad-core Cortex-A53 1.5GHz | |
| RK3588 Octa-core Cortex-A76+Cortex-A55 2.4GHz | |
| T982 Quad-coreCortex-A55 1.92GHz | |
| A527 Octa-core Cortex-A55 2.0GHz | |
| RK3576 Octa-core Cortex-A76+Cortex-A55 2.2GHz | |
| RAM&Memory: | RAM: 1GB/2GB/4GB/8GB |
| Flash memory: 8GB/16GB/32GB/64GB/128GB | |
| SSD: 128GB/256GB/512GB/1TB | |
| WiFi module: | WiFi4/5/6 |
| Touch screen: | Capacitive (10-20 Touch Points) |
| USB port: | USB2.0/USB3.0 |
| Operating system: | Android 6.0/7.1/8.1/11.0/12.0/13/14 Or Linux Debian10/11/ubuntu18.04 |
| Extendable Options: | |
| High Brightness: | Normal/500nits/700nits/1000nits optional |
| Camera: | 2MP/5MP/8MP |
| Operating Temperature: | lndustrial grade:-20 to 70°C/-30 to 80°C |
| Ambient Sensor: | Auto brightness adjustment against environment |
| Battery Power: | Powered by rechargable lithium battery |
| 3G/4G network: | Build in 3G/4G module with SIM card slot |
| GPS: | Build in or external |
| Shelf mounting bracket: | Such as supermarket |
| Desktop bracket: | Works as POS machine |
| POE design: | Powered by RJ45 port |
| BT module: | 4.0/4.2/5.2 optional |
| NFC: | NFC card reader |
| Accessories: | |
| Power Adaptor,Bracket | |
| Packing Details: | |
| Cartonsize: | 520x490x400mm |
| Unit/Carton: | 5PCS |
| G.W./Carton: | 14KGS |
1.CPU: A64/A133/RK3562/RK3566/RK3568/RK3288/RK3399
/RK3588/RK3576/T982/A527
2.RAM: 1GB/2GB/4GB/8GB
3.Flash memory: 8GB/16GB/32GB/64GB/128GB
4.SSD storage: 120GB/240GB/516/1T
5.Operating system: Android 6.0/7.1/8.1/9.0/11.0/12.0/13.0
Or Linux Debian11/Ubuntu18.04/Ubuntu20.04
6.WIFl: WiFi 4/WiFi 5/WiFi 6 (2.4GHz, 5GHz)
7.With CMS to be digital signage
