| General: | |
| Model No | MW-1732TP |
| H.S. Code | 8521909090 |
| Warrant | Standard 1 year |
| Panel: | |
| Panel Size | 17.3inch TFT LCD |
| Max Resolution | 1920*1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 89/89/89/89 |
| Contrast Ratio | 800:1 |
| Brightness | 350nits |
| Response Time | 8 ms |
| Lamp Type | WLED |
| Build in Speakers | 2x5W |
| Power Input | 110-240v |
| DC Output | 12V,2A |
| Physical Characteristics: | |
| Product Weight | 2KG |

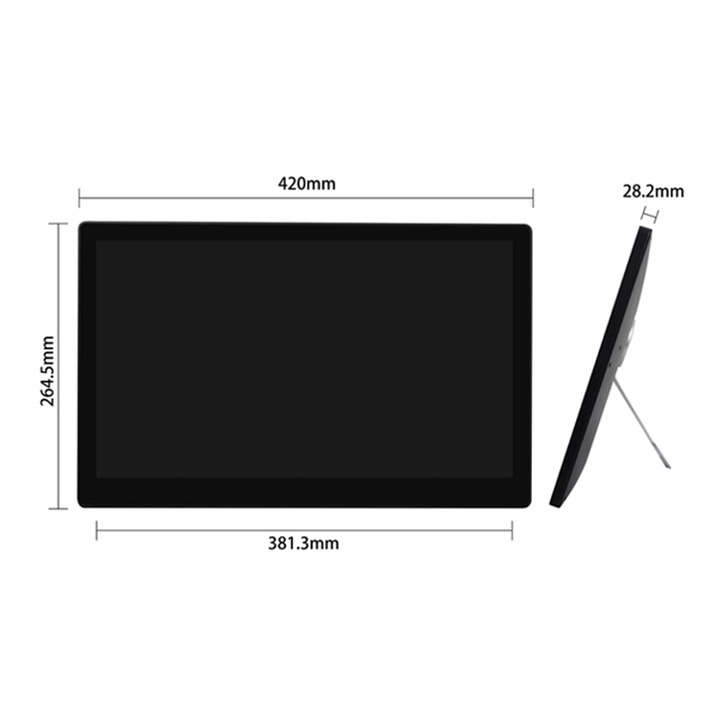

| Outlook Dimensions | 420*264.5*28.2MM |
| Display Area | 381.3*230MM |

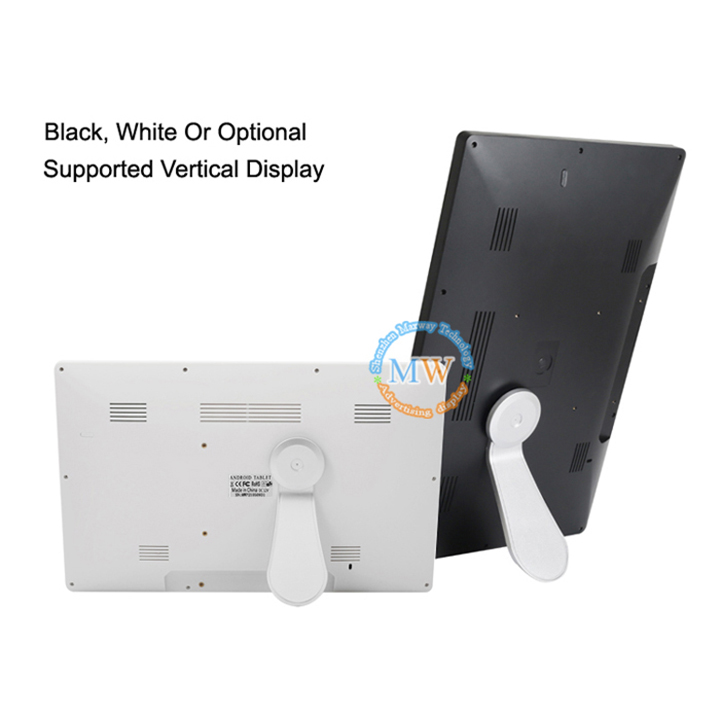

| Color | White,black or optional |
| Installation: | Desktop or wall-mounting VESA75*75mm |
| Materials | Plastic base and front front tempered glass |
| Display Hardware: | |
| CPU Options: | A64 Quad-core ARM Cortex-A53,1.5GHz |
| RK3288 Quad-core ARM Cortex-A17,1.8GHz | |
| RK3566 Quad-core ARM Cortex-A55,1.8GHz | |
| RK3568 Quad-core ARM Cortex-A55,2.0GHz | |
| RK3399 Dual-core Cortex-A72 2.0GHz + Quad-core Cortex-A53 1.5GHz | |
| RAM: | 1GB/2GB/4GB |
| Nand Flash: | Standard 8GB (16GB/32GB optional) |
| WiFi module: | Support WIFI 802.11b/g/n |
| 3G/4G network: | Build in 3G/4G module optional |
| BT module: | 4.0 optional |
| USB port: | Support USB mouse or keyboard |
| Operating system: | Andriod 6.0/7.1/8.1/11.0 |
| Extendable Options: | |
| Touchscreen | Capacitive touch screen |
| High brightness | 350nits |
| Battery powered | by external battery pack. |
| Gravity Sensor | Auto rotation picture when vertical display or horizontal display |
| Metal Housing | Desktop or wall-mounting VESA75*75mm |
| Camera | 2MP/5MP/8MP |
| POE | Powered from RJ45 port |
| 3G/4G | SIM card slot |
| GPS | With Entena |
| Accessories: | |
| Power Adaptor, Bracket, Remote Control, Use Manual | |
| Packing Details: | |
Carton size | 490*420*420MM |
| Unit/Carton | 5PCS |
| G.W./Carton | 10KGS |
1. Solution: A64/RK3288/RK3566//RK3568
2. Android OS 6.0/7.1/8.1/11.0
3. RAM 1GB/2GB/4GB(DDR)
4. Flash 8GB/16GB/32GB
5. WiFi 802.11b/g/n
6. Mobile network 3G/4G , GPS are optional
7. Contents Management Software(CMS) optional
8. I/O interface: 3*USB, 1*SD card slot, 1*RJ45 port,
HDMI output *1（optional）
Plug And Play Advertising Display
1. Auto playback and loop 1080P video/picture/music
2. Play from SD card reader/USB ports/internal memory
3. Auto update contents from USB key to internal memory
4. Set time power ON/OF at specific time
5. Support rolling caption in different color and effect
6. Support portrait/landscape display
7. HDMI input for contents from other sources
8. I/O interface: 1*USB,1*SD card slot,HDMI input *1
1. 7/24 hours design
2. Support devices: mini PC/computer/Android box/Raspberry PI/Media player box
3. I/O interface: HDMI input
