86" Ultra Wide Screen Stretch Bar Type LCD Floor Stand Advertising Display

General:
Model NoMW-861AD(N/P/S/M)
H.S. Code8521909090
WarrantyStandard 1 year
Panel:
Panel Size86 inch TFT LCD
Max Resolution3840*1080 4K resolution
Aspect Ratio32:9
Pixel Pitch0.4935x0.4935mm
Viewing Angle89/89/89/89
Contrast Ratio4000:1
Brightness500nits (optional up to 700nits)
Response Time6ms
Display Area457.95x1649.66mm
Panel Size
Lamp TypeWLED
Build in Speakers2x5W
Power Input110-240V
Power Consumption25W
Physical Characteristics:
Product Weight

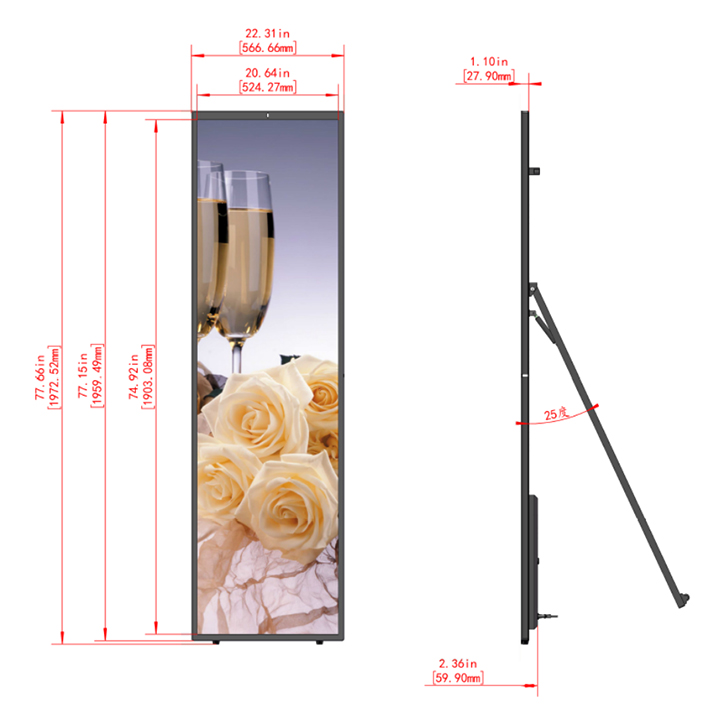

Outlook Dimensions566.66mmx1972.52mmx59.90mm
Color1.07B
Brochure RackNo
Materials:
Surface: Tempered glass
Body: Metal case
Side frame: Aluminum
Base: Metal
Extendable Options:
Touch screenOptional, to make interacive contents
High brightness500nits/1000nits/1500nits
Motion sensor

For auto power ON/OFF or sound/mute or play/stop

Camera500MP
Printer58mm/88mm
Accessories:
Power cord, manual, remote control, keys, tools, screws, warranty card
Packing Details:
Wooden box size180cm×20cm×53cm
Unit/box
G.W./box


  • Android Digital Signage

    Android Digital Signage

    1. Solution: A64/RK3566/RK3288//RK3399

    2. Android OS 6.0/7.1/8.1/11.0  (Linux optional)

    3. RAM 2GB/4GB/8GB(DDR)

    4. Flash  Standard 8GB(16GB/32GB/64G optional)

    5. WiFi 802.11b/g/n

    6. Mobile network 3G/4G optional

    7. Contents Management Software(CMS) optional



  • Plug And Play Advertising Display

    Plug And Play Advertising Display

    1. Auto playback and loop 1080P video/picture/music

    2. Play from SD card reader/USB ports

    3. Auto update contents from USB key to inserted SD memory card

    4. Set time power ON/OF at specific time

    5. Support rolling caption in different color and effect

    6. Support minimum sound volume

    7. Support portrait/landscape display

    8. HDMI input for contents from other sources

    9. I/O interface: 1*USB, 1*SD card slot, HDMI input *1

  • LCD Monitor Feature

    LCD Monitor Feature

    1. 7/24 hours design

    2. Support devices: mini PC/computer/Android box/Raspberry PI/Media player box

    3. I/O interface: VGA *1, HDMI *2, Audio in/out inputs, USB port(touch screen)


  • All-in-one PC Windows/Linux

    All-in-one PC Windows/Linux

    1. CPU: Intel Celeron J1900/Intel Core i3/i5/i7

    2. Chipset: 1037U+NM70/Haswell-u

    3. System memory: 2GB/4GB/8GB/16GB

    4. SSD: 120GB/240GB; HD: 500GB/1TB

    5. WiFi 802.11b/g/n

    6. Support OS: Win7/8/10, Linux (trial version or licenses)

    7. I/O interface: 3*USB, 1*SD card slot, 1*RJ45 port, HDMI output *1
