| General: | |
| Model No.: | MW-194AF(N/P/M)T |
| H.S. Code: | 8528591090 |
| Warranty: | Standard 1 year |
| Power Input: | 12V, 12A |
| Panel: | |
| Panel Size: | 19 inch |
| Max Resolution: | 1280x1024 |
| Aspect Ratio: | 5:4 |
| Viewing Angle: | 85/85/80/80 |
| Contrast Ratio: | 700:1 |
| Brightness: | 300nits |
| Response Time: | 8ms |
| Display Area: | 376.32x301.06mm |
| Build in Speakers: | 2x3W |
| Operating Temp: | (-20-70°C) |
| Physical Characteristics: | |
| Product Weight: | |
| Outlook Dimensions: | 436.50x364.50x50mm |
| Color: | Black/white or optional |
| Installation: | Build-in/embeded |
| Materials: | Front tempered glass+metal cover |
| Extendable Options: | |
| Touch Screen: | Capacitive (10-20 Touch Points) |
| Motion Sensor: | Auto power ON/OFF, or auto mute/sound |
| High Brightness: | Normal/500nits/700nits/1000nits/1500nits optional |

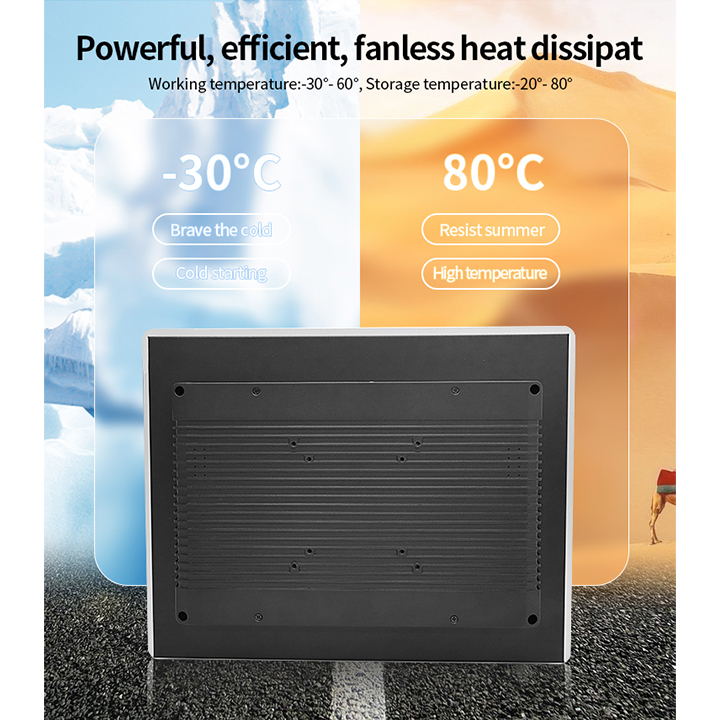

| Operating Temperature: | lndustrial grade:-20 to 70°C/-30 to 80°C |
| Camera: | 2MP/5MP/8MP |
| Antiglare: | AG/AR antiglare surface |
| Light Sensor: | Auto brightness adjustment against environment |
| Battery Power: | powered by rechargable lithium battery |
| 3G/4G network: | Build in 3G/4G module with SIM card slot |
| GPS: | Build in GPS with entena |
| NFC: | NFC cardreader |
| Accessories: | |
| Power cord, remote control, keys, tools, screws | |
| Packing Details: | |
| Cartonsize: | |
| Unit/Carton: | |
| G.W./Carton: | |
1.CPU: A64/A133/RK3562/RK3566/RK3568/RK3288/RK3399
/RK3588/T982/A527
2.RAM: 1GB/2GB/4GB/8GB
3.Flash memory: 8GB/16GB/32GB/64GB/128GB
4.SSD storage: 120GB/240GB/516/1T
5.Operating system: Android 6.0/7.1/8.1/9.0/11.0/12.0/13.0
Or Linux Debian11/Ubuntu18.04/Ubuntu20.04
6.WIFl: WiFi 4/WiFi 5/WiFi 6 (2.4GHz, 5GHz)
7.With CMS to be digital signage
Standalone Advertising Display
1.Auto playback and loop when power on
2.Internal memory: 1GB/2GB/4GB/8GB/16GB/32GB/64GB
3.Support max full HD display
4.With SD card slot, USB2.0 port
5.With/Without Mini HDMI input
6.Set time power on/off at specific time
1.Standard HDMI/DVI/VGA inputs, DP optional
2.2K/4K display
3.IR touch/Capacitive touch
4.Auto display when there is signal
1.CPU: Intel Processor i3/i5/i7/i9 (2nd to 14th) /Celeron,
Pentium series
2.RAM: 4GB/8GB/16GB/32GB
3.SSD storage: 128GB/240GB/516/1T/2T
4.RJ45 port: 1/2 ports, Baimeganet/Giganet
5.Operating system: Windows 10/11/Linux
6.WiFi 4/WiFi 5/WiFi 6 (2.4GHz, 5GHz)
7.Blackberry Pl
