| General: | |
| Model No | MW-211OB(N/P/S/M) |
| H.S. Code | 8528591090 |
| Warranty | Standard 1 year |
| Panel: | |
| Panel Size | 21.5inch TFT LCD |
| Max Resolution | 1920x1080 |
| Aspect Ratio | 16:09 |
| Pixel Pitch | 0.24825*0.24825 |
| Viewing Angle | 89/89/89/89 |
| Contrast Ratio | 1000:1 |
| Brightness | 1500nits |
| Response Time | 14ms |
| Display Area | 476.64x268.11mm |
| Panel Size | 495.6x292.2x10.7mm |
| Lamp Type | WLED |
| Build in Speakers | 2x3W |
| Operation Parameters: | |
| Brightness Control | Automatic light sensor system |
| Temperature Control System | Intelligent fans cooling |
| Operating Temperature | -20°C to +40°C |
| Operating Humidity | 5% to 90% |
| Power Supply | AC110-240V |
| Max Consumption | 0.2KW |
| Waterproof Enclosure | |
| Protection Grade | IP65 |

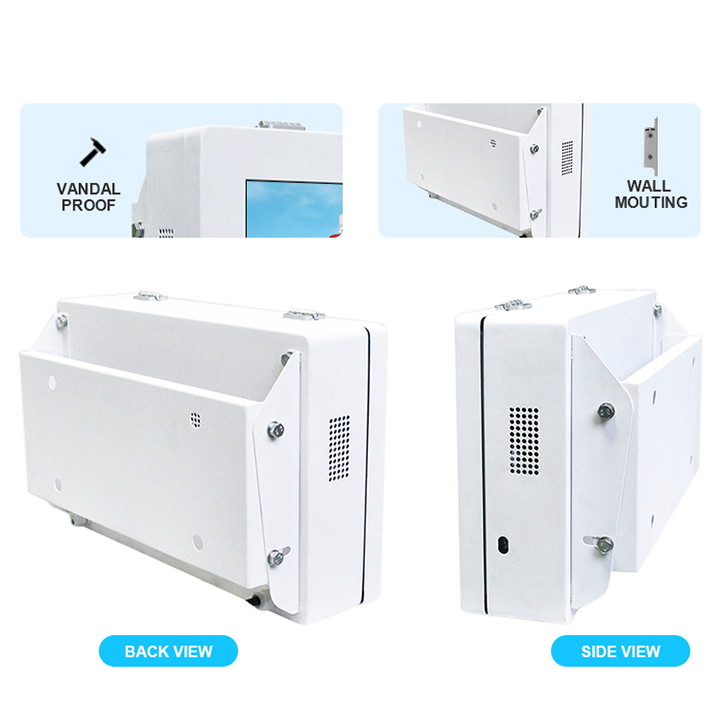

| Installation | Back hanging or customized |
| Protection Glass | 6mm AR tempered glass |
| Physical Characteristics: | |
| Product Weight | |
| Outlook Dimensions | 820*540*240mm |
| Color | Silver, White, Black or optional |
| Housing material | Rustproof case |
| Extendable Options: | |
| Touchscreen | Capacitive(PCAP)touch/Nano touch |
| High brightness | 1500nits |
| Motion sensor | For auto power ON/OFF or sound/mute or play/stop |
| Camera | 500MP |
| Printer | 58mm/88mm |
| Build in Air conditioner | For temperature more than 45 degrees celsius |
| Solar Power | Custom solar power board |
| Dual Side display | front and back sides display same contents or differnt content |
| Small LED Screen | Integrated small LED screen for txt information display |
| POS System | Custom design POS,keyboard,card reader,printer...etc |
| Accessories: | |
| Power cord, manual, remote control, keys, tools, screws, warranty card | |
1. Solution: A64/RK3288/RK3566//RK3568/RK3399
2. Android OS 6.0/7.1/8.1/11.0
3. RAM 1GB/2GB/4GB(DDR)
4. Flash 8GB/16GB/32GB/64GB
5. WiFi 802.11b/g/n
6. Mobile network 3G/4G optional
7. Contents Management Software(CMS) optional
Plug And Play Advertising Display
1. Auto playback and loop 1080P video/picture/music
2. Play from SD card reader/USB ports
3. Auto update contents from USB key to inserted SD memory card
4. Set time power ON/OF at specific time
5. Support rolling caption in different color and effect
6. Support minimum sound volume
7. Support portrait/landscape display
8. HDMI input for contents from other sources
9. I/O interface: 1*USB, 1*SD card slot, HDMI input *1
1. 7/24 hours design
2. Support devices: mini PC/computer/Android box/Raspberry PI/Media player box
3. I/O interface: VGA *1, HDMI *2, Audio in/out inputs, USB port(touch screen)
1. CPU: Intel Celeron J1900/Intel Core i3/i5/i7
2. Chipset: 1037U+NM70/Haswell-u
3. System memory: 2GB/4GB/8GB/16GB
4. SSD: 120GB/240GB; HD: 500GB/1TB
5. WiFi 802.11b/g/n
6. Support OS: Win7/8/10, Linux (trial version or licenses)
7. I/O interface: 3*USB, 1*SD card slot, 1*RJ45 port, HDMI output *1
